SPECIFICATIONS
Platform Height Tower Height Work Height Max Load
120 cm 240 cm 340 cm 150 kg/Deck
ComponentSizeQuantity
Podium Foldable Frame200 cm High with Easy Gate and 2 SA Stabilizer1
Podium Steps78.50 cm2
Podium Standard145 cm1
Podium Diagonal107 cm1
Wheel (EN Caster with Fixed Jack)13 cm4
Remark:
SA = Single Arm

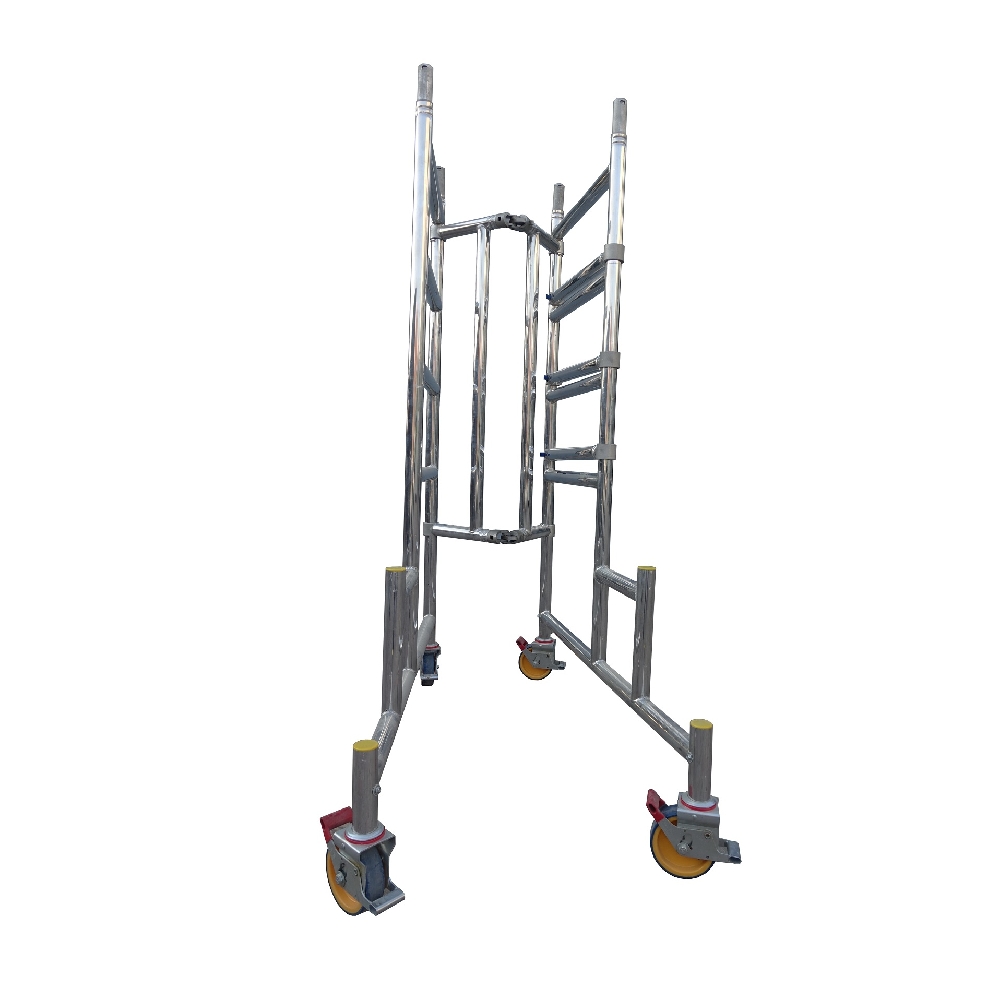

ASCEND cost effective solution for low level access jobs, the foldable podium 145 cm x 75 cm with platform height 1.2 m is compact to push through most doorways, and it is designed with self-latching safety gate and fully-enclosed secure platform to comply with The Work at Height Regulations.
| FOLDABLE PODIUM – PLATFORM 1.2 M (EUROPEAN CASTER) | |||||
| Podium Frame: | A welded aluminum alloy (6061-T6) frame with rung gap of 50 cm and vertical tube thickness of 2.5 mm. | ||||
| Frame Connection: | Spigot joint, designed through cold forming, is an integral part of vertical tube (thickness of 2.5 mm) and is used to connect the frames to give maximum strength amid the whole podium structure. | ||||
| TIG Welding: | Produces a high quality of weld-finish with precise control of heat variables (via amperage controls), leave no slag or splatter, keeping weld and surrounding metal as clean as possible. | ||||
| Standard Platform: | Working platform, made of water-resistant and anti-slip wood, has aluminum frames all around for the perfect fitting. | ||||
| Safety Mechanism: | The wind-lock safety system is to hold the structure from accidental lift. And, it is designed with self-latching safety gate and fully-enclosed secure platform to comply with The Work at Height Regulations. | ||||
| Podium Stabilizer: | The stabilizer is designed to use at the two corners of podium. It has rubberized anti-slip pad to empower safety against sliding off. | ||||
| Castor Wheel: | Available in 13 cm fixed-jack and constitutes dual-pedal braking for easy operation. | ||||
